How to Use Photoetch Parts Without the Fight (26.07.26)
Photoetched metal can turn a good kit into a far more convincing model, but only when the parts are handled with control. Learning how to use photoetch parts is less about expensive equipment than knowing when to cut, bend, anneal, glue, and leave a part alone. A badly fitted brass hatch or a bent radar antenna will draw more attention than a carefully painted kit part.
Photoetch is most useful where injected plastic reaches its limits: thin armor fenders, aircraft seat belts, ship railings, cockpit levers, engine screens, grille mesh, brackets, and open framework. It is not automatically an improvement in every location. Before removing anything from the fret, compare the etched replacement with the kit part and the instructions. The best choice is the one that looks right in scale and can be installed cleanly.

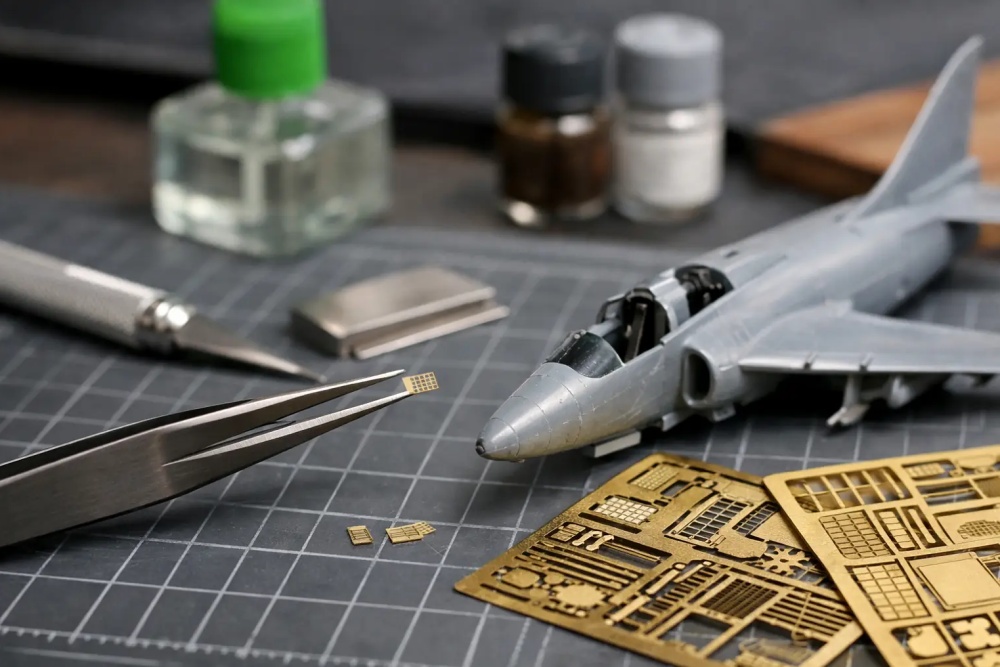

Start With the Right Photoetch Tools
A basic setup is enough for most aircraft, armor, and ship sets. Use a hard, smooth cutting surface such as a ceramic tile, glass sheet, or self-healing mat with a firm backing. Remove parts with a fresh No. 11 blade, a dedicated photoetch chisel, or a single-edge razor blade. Avoid twisting parts away from the fret with side cutters. That method often bends delicate pieces at the attachment point.
Fine tweezers are necessary, but they are not the only holding tool you need. Smooth-jaw pliers, a small bending tool, flat metal rulers, toothpicks, and a burnishing tool cover most jobs. For tiny handles, buckles, and brackets, a sharpened wooden toothpick often gives better control than tweezers because it will not launch the part across the bench.
Use a fine file, sanding stick, or diamond file to remove the small attachment tabs left after cutting. Support the part close to the tab while filing. Thin railings and antenna parts can distort quickly if they are held only at one end.
How to Use Photoetch Parts: Plan Before Cutting
Do not remove an entire fret at the beginning of a build. Photoetch parts are easy to misplace, difficult to identify after separation, and vulnerable to bending during handling. Work in small batches that match the current stage of the kit instructions.
Study the etched set instructions alongside the kit instructions. Aftermarket sets may replace, overlay, or modify kit components. A cockpit set can require sidewalls to be sanded thinner before consoles fit. An armor set may ask you to remove molded-on tool clamps. Ship railings may be designed around a particular hull version, so check the location and length before cutting.
Dry-fitting matters more with photoetch than with plastic. Place the part without adhesive, check its orientation, and confirm that a fold is made in the correct direction. On symmetrical components, mark the back lightly with a pencil before bending. A reversed instrument panel frame or landing-gear scissor link can be surprisingly easy to install upside down.
Some parts should remain on the fret until after painting. Seat belt hardware, small cockpit boxes, and layered instrument faces are easier to paint when held by a tab. Other parts, particularly railings and pre-formed fenders, are best painted after assembly so the finish remains uniform. The sequence depends on access and masking, not a single universal rule.
Making Accurate Folds and Curves
Most etched parts have a half-etched fold line. This thinner line is intended to become the inside of the bend unless the instructions show otherwise. Place the fold line exactly along the edge of a bending tool, ruler, or flat-jaw pliers. Hold the part firmly and raise the free section in one controlled movement.
For long straight folds, a dedicated photoetch folding tool is worthwhile. It keeps the bend square across ammunition boxes, aircraft cockpit consoles, and ship deck structures. For short folds, flat-jaw pliers are often faster and equally accurate. Do not repeatedly flex brass back and forth to improve the angle. It work-hardens and can snap.
Curved parts need gradual shaping. Roll them around a drill bit, paintbrush handle, brass rod, or other round form that matches the required radius. Start with a slightly larger diameter than you think you need, then tighten the curve slowly. This approach is especially useful for exhaust shrouds, radar dishes, wheel well liners, and rounded vehicle details.
If a part must make a complex curve or an unusually tight bend, annealing can help. Hold the brass in tweezers, pass it through a flame briefly until it darkens, then allow it to cool naturally. Annealed brass becomes softer and easier to form, but it also loses some spring and can be damaged more easily. Do not anneal parts with tiny embossed detail unless the instructions or the shape clearly require it.
Choosing and Applying Adhesive
Plastic cement will not bond photoetch. For most applications, cyanoacrylate adhesive, commonly called CA, is the practical choice. Use thin CA when a part sits tightly against the model and capillary action can pull adhesive into the joint. Use medium or gel CA when you need a little positioning time or when a small gap must be filled.
Never apply CA directly from the bottle to the model. Put a small drop on a disposable palette, then transfer it with a fine wire, needle, stretched sprue, or toothpick. This prevents excess glue from flooding nearby detail. A tiny amount is usually enough. If adhesive squeezes out around a brass part, it will create a shiny ridge that is difficult to hide under paint.
For large, flat overlays such as armor plates, cockpit sidewall skins, or deck panels, two-part epoxy can provide more working time and a stronger bond. Its thickness is both an advantage and a limitation. Epoxy helps fill uneven surfaces, but it can prevent a flat etched part from sitting flush if too much is used.
PVA-style canopy glue is useful for delicate pieces that do not carry stress, especially where you want more adjustment time and a clear-drying adhesive. It is not the choice for a heavy brass fender or a part likely to be handled during construction. Consider the part's size, contact area, and exposure to later work before selecting the adhesive.
Clean Up the Plastic Before Installation
Photoetch often reveals problems that molded detail previously disguised. When replacing a plastic grille or hatch, remove the original detail completely and level the surface. Use a chisel blade or scraper for raised features, then finish with fine sanding. If an etched mesh is meant to sit over an opening, paint the cavity dark before installation. A solid plastic surface visible behind the mesh can spoil the effect.
For aircraft cockpit sets, test the fit after each layer. A floor, rear bulkhead, seat, and side consoles can all compete for the same small space. In 1/72 scale, even a thin layer of paint or excess CA can keep a fuselage from closing. Sanding the hidden back of an etched part is sometimes necessary, particularly with laminated instrument panels.
On armor models, leave fragile tool clamps, handles, and mudguard details until the basic hull construction and heavier painting stages are complete. On ships, install railings after major deck painting and weathering whenever possible. They are realistic because they are thin, but that same thinness makes them easy to bend while masking or handling the hull.
Paint Photoetch for a Durable Finish
Brass and stainless steel should be cleaned before painting. Finger oils and manufacturing residue can reduce paint adhesion. Wash the fret or finished subassembly gently with warm water and a small amount of dish soap, then let it dry fully. Handle cleaned parts with tweezers where practical.
A metal-compatible primer gives the paint a better surface to grip. Apply light coats rather than trying to cover every edge at once. Heavy primer can fill fine perforations, mesh, and relief detail. For pre-painted cockpit components, paint the base color first, add detail painting and washes, then attach the part once it is fully dry.
Expect paint to make moving pieces stick. If you are adding a workable hatch, hinge, or gun sight, keep paint out of the contact points or accept that it may become fixed after finishing. A model does not need every etched hinge to function. A secure, correctly aligned static part is usually the better result.
Common Mistakes Worth Avoiding
The most common error is using photoetch simply because it is included. A flat brass seat can look less convincing than a well-detailed plastic or resin seat with separate belts. Likewise, an etched ignition harness may be too delicate to survive handling on a model that will be transported often. Use the parts that improve visible scale thickness, open detail, or fidelity.
Another mistake is chasing perfect bends after the part is glued. Correct the shape during dry-fitting, not after CA has cured. If a small piece goes missing, do not let it stall the project. A short length of wire, strip plastic, or a carefully trimmed spare can often replace a handle or bracket more quickly than searching the floor.
Photoetch rewards patience, but it should not make the build feel like a test of endurance. Start with visible, straightforward items such as seat belts, screens, tool clamps, or a simple instrument panel. As your control improves, move to railings, folded boxes, and complex assemblies. The goal is not to use every brass part on the fret. It is to make each chosen detail look as though it belonged on the model from the start.
